Mold Manufacture

     Our mold making department is capable of constructing numerous types of injection molds with significant experience in most modern mold construction systems.
          ☆ High cavitation molds  ☆ Multi-Material molding (2k) and Overmolding  ☆ Gas Assist molding  ☆ Foam Injection techniques  ☆ Close tolerance Molding
          ☆ In-Mold Labeling  ☆ Thin wall molding ☆ Cut in Solid  ☆ High cycle molds (over 10 million)  ☆ Compression molding ☆ Elastomeric molding

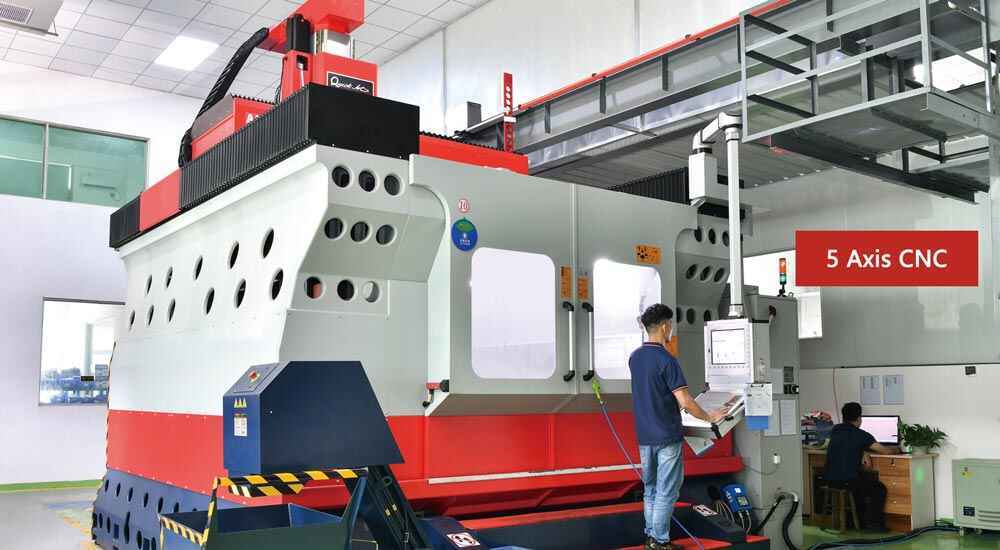

5 Axis CNC
5 Axis CNC

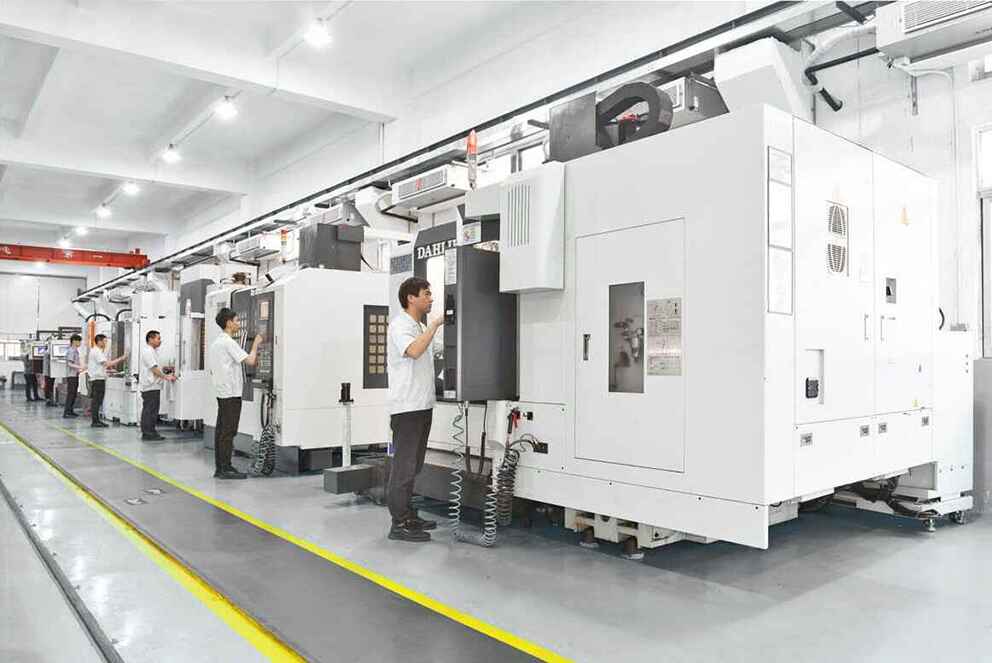

CNC Machining Center
CNC Machining Center
EDM Machine
EDM Machine

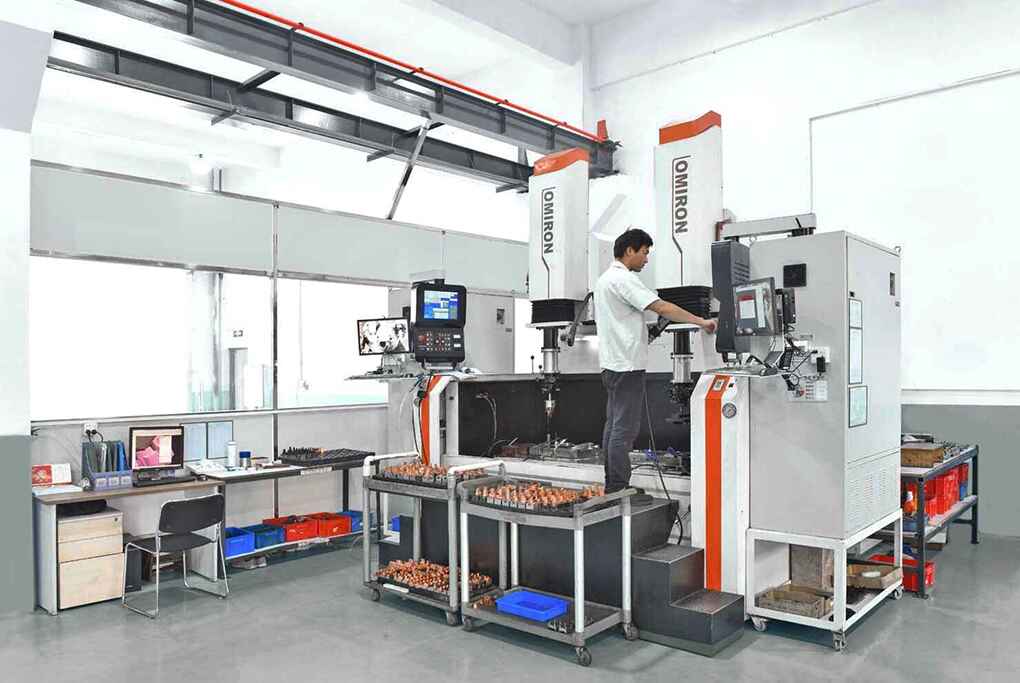

Double-head EDM Machining
Double-head EDM Machining

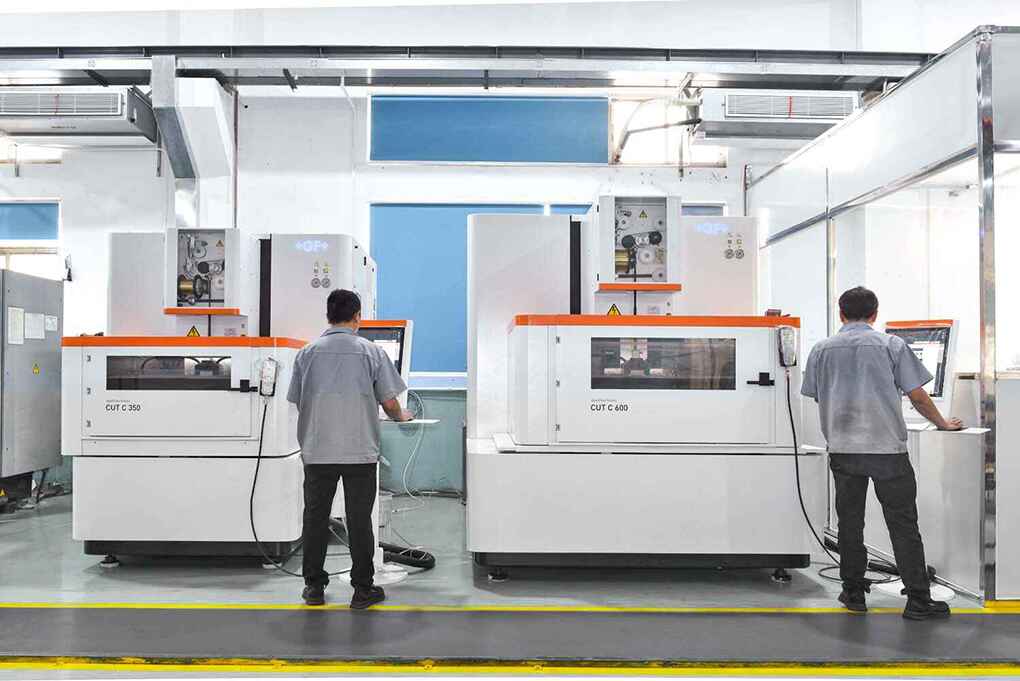

Wire Cutting
Wire Cutting
ROKU-ROKU (High Speed Graphite)
ROKU-ROKU (High Speed Graphite)

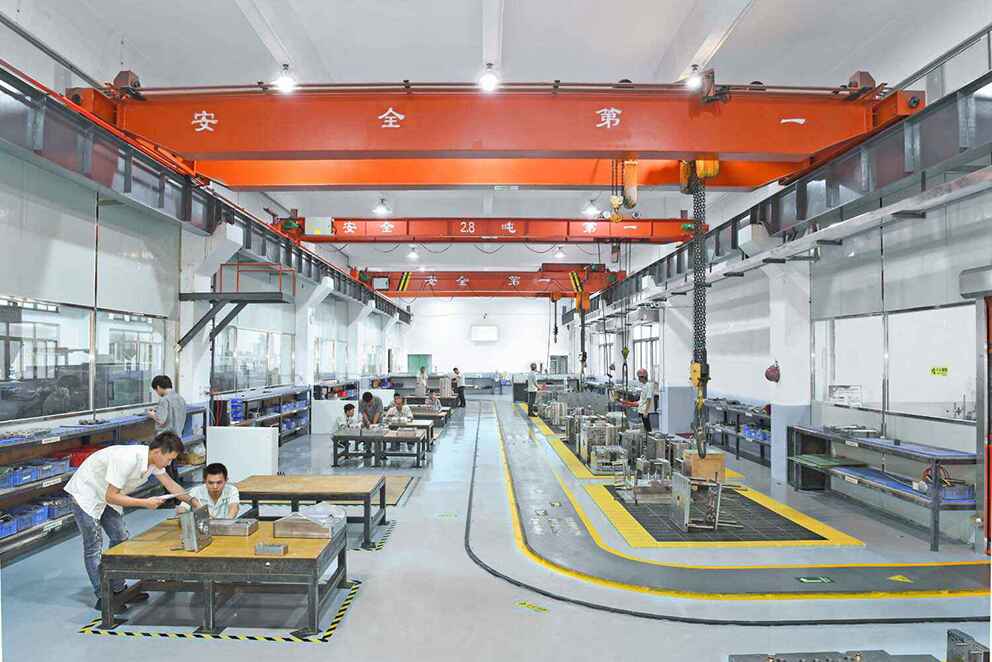

Mold Fitting Center
Mold Fitting Center

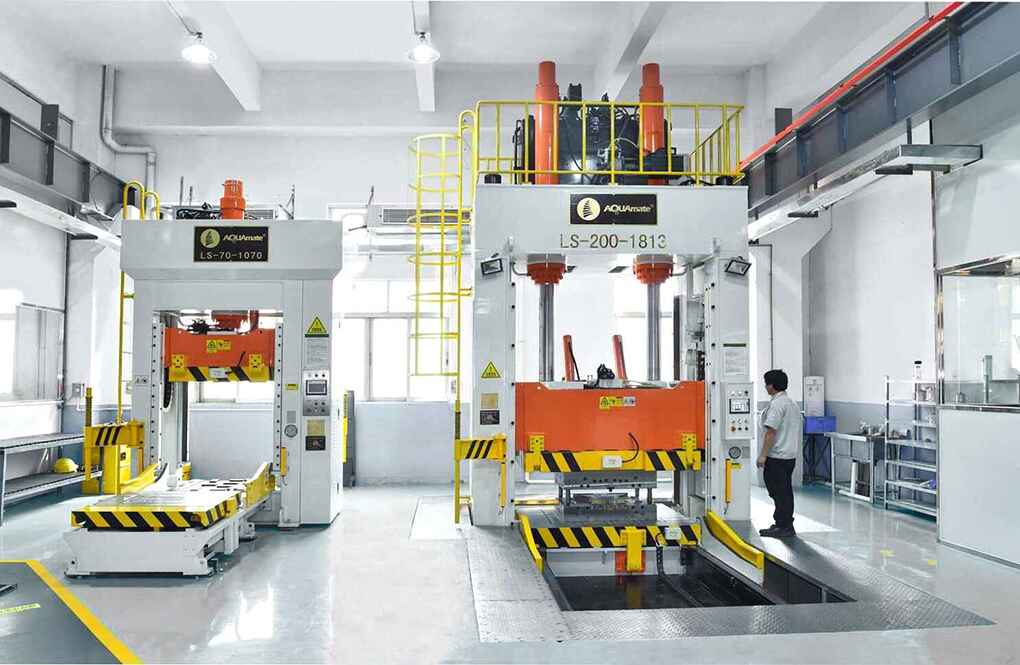

Mold Assemble Center
Mold Assemble Center
Mold Assemble Center
Mold Assemble Center


Injection Mold Manufacture Process1744448976877084.jpg

1744860756702.jpg  Order Steel, Mold Base and Components

1744860756702.jpg  CNC Program for Mold & Electrode Milling

1744860756702.jpg  Rough CNC Machining

1744860756702.jpg  Precise CNC Machining

1744860756702.jpg  EDM and Wire Cutting

1744860756702.jpg  Polishing & Surface Finishing

1744860756702.jpg  Mold Fitting Mold Assembly

1744860756702.jpg  Mold Trial T1
